DJ-type sidewall belt conveyor

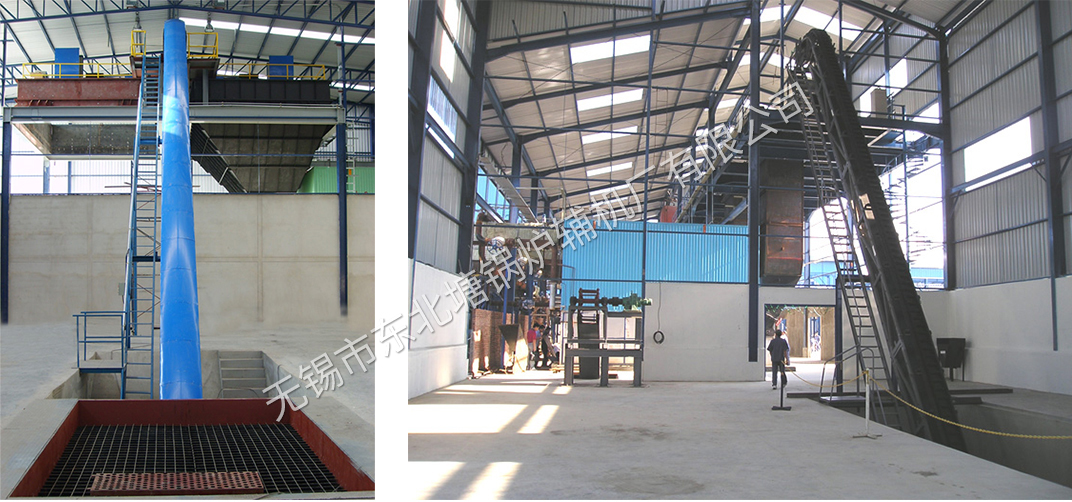

DJ-type large-inclination corrugated sidewall belt conveyor

The DJ-type large-inclination corrugated sidewall belt conveyor is a new type of belt conveyor. It has the advantages of easy angle change, small floor space, low energy consumption, low noise, large conveying capacity, stable operation of the belt, long service life, a variety of optional models, and low overall cost. It is widely used in ports, docks, metallurgy, chemical industry, electric power, coal, building materials and other sectors for conveying block or bulk materials. The bandwidth series includes: B500, 650, 800, 1000, 1200, 1400.

Theoretical conveying capacity of corrugated sidewall belt conveyor m³/h

dip angle	Distance between diaphragms in mm/ transportation capacity/ Height of the ribmm	80	100	120	160	200	240	300	400
30°	160 200 250 330	225	278 266 252 229	349 338 323 300	493 482 467 444	552	746 734 720 697	936 912	1200
35°	160 200 250 330	203 186	257 240 219 186	329 312 291 258	456 435 402	543 510	725 708 687 654	903 870	1158
40°	160 200 250 330	183 161	237 215 188 146	309 287 260 217	431 404 361	512 469	705 683 656 613	872 829	1117
45°	160 200 250 330	164 137 110 83	218 191 158 120	290 263 230 179	434 407 374 321	515 482 429	686 659 626 573	842 789	1077
50°	160 200 250 330	145 116 93 70	199 168 134 102	271 240 201 152	415 384 345 282	492 453 390	667 636 597 534	812 750	1038
55°	125 200 250 330	157 101 81 61	212 146 117 88	284 216 174 132	427 360 315 246	468 423 352	612 567 495	783 711	1000
60°	125 200 250 330	142 89 71 54	197 129 103 73	271 192 154 116	336 285 217	444 393 31?	588 537 456	753 672	960
65°	125 200 250 330	127 79 63 43	181 115 92 69	253 171 291 220	311 255	420 361 278	563 506 415	722 630	920
70°	125 200 250 330	114 71 57 43	165 103 82 62	237 154 123 93	285 229 173	394 330 250	538 474 373	689 588	876
75°	125 200 250 330	103 64 51 39	149 93 74 56	219 139 111 84	258 207 156	366 298 226	510 439 337	655 542	830
80°	125 200 250 330	93 53 46 35	134 84 67 51	201 125 100 76	233 187 141	336 269 204	489 402 304	617 493	780
85°	125 200 250 330	84 52 42 32	121 76 61 46	181 113 91 69	211 169 128	304 243 184	447 364 276	576 445	726
90°	125 200 250 330	76 47 58 28	110 68 56 41	165 102 82 62	300 190 152 115	409 274 519 166	409 327 248	528 402	665
