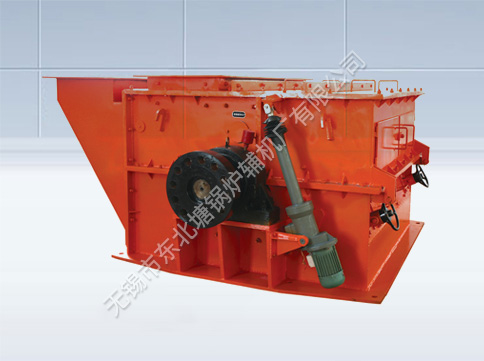

PCH series ring hammer crusher

Scope of use

Ring hammer crushers are used to crush various brittle materials, such as coal, gangue, coke, slag, shale, red sandstone, loose limestone, etc. For the PCH type, the compressive strength of the materials to be crushed does not exceed 100MPa, and the surface moisture content is not more than 15%. The PCHZ type ring hammer crusher can crush both coal and stone. It has a wider range of applications than the PCH type and can be used to crush various sand and stone materials, such as limonite, pyrite, magnetite, limestone, phosphate rock, cobblestone, etc. The compressive strength of the materials to be crushed does not exceed

model number	Rotor Diameter X Length mm	Rotor speed r/min	Large feed block size mm	Discharge granularity mm	output t/h	electric motor				Overall dimensions			Scratch force value t	Large separated part (rotor) weight Kg	Total amount (excluding motor Kg)
						model number	Power KW	Voltage V	Weight kg	long mm	wide mm	tall mm
PCH-0402	400× 200	960	200	≤60	8-12	Y132M2-6	5.5	380	100	810	890	560	0.165	190	800
PCH-0404	400× 400	970			16-25	Y160L-6	11		150	980	890	570	0.252	300	1050
PCH-0604	600× 400				22-33	Y180L-6	15		170	1050	1270	800	0.309	540	1430
PCH-0606	600× 600	980			30-60	Y225M-6	30		360	1350	1270	820	0.610	730	1770
PCH-0808	800× 800	740			75-105	Y280M-8	45		600	1750	1620	1080	0.495	1400	3600
PCH-1010	1000× 1000		300		160-200	Y315M2-8	90		1100 1200	2100	2000	1340	0.780	2700	6100
					200-245	Y315M3-8	110
PCH-1016	1000× 1600				300-350	JS128-8	155		1600	2700	2000	1350	1.271	3280	9200
					400-500	Y400-8	220	6000	3100
PCH-1216	1200× 1600		400		500-620		280		3600 4100	3100	2800	1750	2.310	5100	15000
					620-800	Y450-8	355
PCH-1221	1200× 2100				800-1000		450 (400)		4300	3620	3350	1950	4.130	6830	24000

Note: The discharge particle size can be arbitrarily selected within the range of 0-60 mm. When the discharge particle size is 15 mm, the output should be 60% of the value listed in the table; when the discharge particle size is 3 mm, the surface moisture of the material should not exceed 10%, and the output should be 30% of the value listed in the table.

model number	Rotor Diameter X Length mm	Rotor rotational speed r/min	Large feed particle size mm	Discharge granularity mm	output t/h	electric motor				Overall dimensions			Scratch force value t	Large separate component (rotor) weight Kg	Total quantity (excluding motor Kg)
model number	Rotor Diameter X Length mm	Rotor rotational speed r/min	Large feed particle size mm	Discharge granularity mm	output t/h	model number	Power KW	Voltage V	Weight kg	long mm	wide mm	tall mm	Scratch force value t	Large separate component (rotor) weight Kg	Total quantity (excluding motor Kg)
PCHZ-0404	400× 400	970	80	≤60	15-25	Y160L-6	11	380	150	980	890	570	0.290	350	1100
PCHZ-0606	600× 600	980	100		35-55	Y225M-6	30		360	1350	1270	820	0.610	730	1770
PCHZ-0808	800× 800	740	120 140		60-80	Y315S-8	55		850	1750	1620	1080	0.830	1550	4100
PCHZ-1010	1000× 1000				100-130	Y312M3-8	110		1200	2100	2000	1340	1.380	2950	6800
PCHZ-1016	1000× 1600				200-250	Y400-8	220	6000	3100	2700	2000	1350	1.870	3520	9800
PCHZ-1216	1200× 1600		160		300-350	Y450-8	355		4100	3100	2800	1750	2.810	5700	15000
PCHZ-1221	1200× 2100		160		400-450	Y450-8	450		4300	3620	3350	1950	4.130	6830	24000

Note: 1. The discharge particle size can be arbitrarily selected within the range of 3-60 mm. When the discharge particle size is 10 mm, the output should be 60% of the value listed in the table; when the discharge particle size is 3 mm, the surface moisture of the material should not exceed 10%, and the output should be 35% of the value listed in the table.

2. The parameters listed in this table are for crushing limestone. When crushing coal, select the relevant parameters according to the coal crusher parameter table.
