Electromagnetic iron remover
RCYD Suspended Belt-type Permanent Sulfur Iron Remover
RCYD Suspended Belt-type Permanent Sulfur Magnetic Separator
RCDB Series Dry-type Electromagnetic Iron Remover

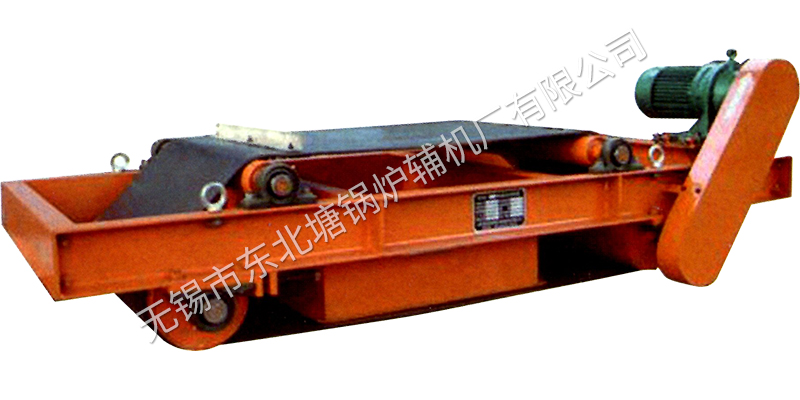

This machine can be vertically installed above the fixed belt conveyor that transports used sand according to process requirements. When materials pass through, it can effectively separate magnetic metals from the sand layer. If it is further used in conjunction with the permanent magnet belt of the belt conveyor, the separation of magnetic metals from the used sand will be cleaner.
| Serial number | Name | unit | S995 | S997 | S998 | S9910 | S9912 |
| 1 | Magnetic separator bandwidth | mm | 650 | 650 | 650 | 650 | 650 |
| 2 | Diameter of the driving wheel | mm | 320 | 320 | 320 | 320 | 320 |
| 3 | Width of the tape machine | mm | 500 | 650 | 800 | 1000 | 1200 |
| 4 | Suspension height | mm | 80-200 | 80-200 | 80-200 | 100-200 | 100-200 |
| 5 | Thickness of the separation layer | mm | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 |
| 6 | Belt speed of magnetic separator | m / s | 1 | 1 | 1 | 1 | 1 |
| 7 | Tape machine speed | m / s | ^1 | ^1 | ^1 | ^1 | -1 |
| 8 | Surface magnetic field strength | A/m | '400 | ^1400 | ^1400 | 51400 | ^1400 |
