The purpose and performance of the machine

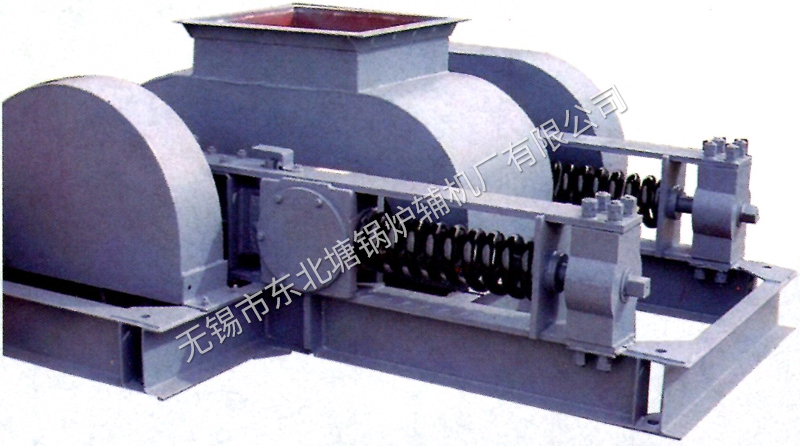

The 2PGC double-toothed roll crusher is suitable for crushing coal, coke, coal residue, oil shale, marlstone, and other brittle materials of medium hardness in coal washing and related industrial sectors. This machine has a simple structure. By changing the specifications of the arch-shaped bodies on the drum, four different discharge particle sizes can be obtained. The structural arrangement is divided into left-hand and right-hand types. Both the discharge particle size and structural arrangement can be manufactured according to the order requirements.
The main technical specifications are as follows：
Roller diameter 450 millimeters
Roll width 500-1000 millimeters
There are four types of discharge particle sizes, namely 25-0 50-0 75-0 100-0 millimeter
| Discharge granularity | 25-0 | 50-0 | 75-0 | 100-0 millimeters | |
| Maximum feed particle size | 1000 | 200 | 200 | 200 millimeters | |
| designed output | Width 500 | 20 tons per hour | 35 tons per hour | 45 tons per hour | 55 tons per hour |
| Width 1000 | 40 tons per hour | 70 tons per hour | 90 tons per hour | 110 tons per hour | |
