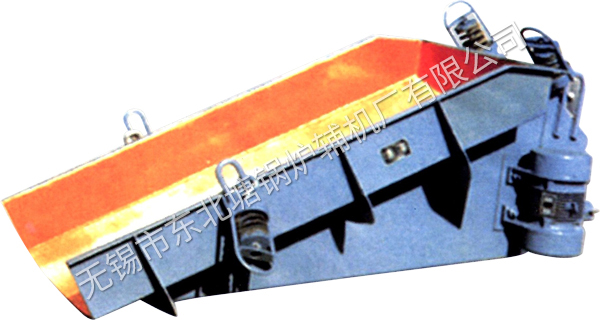

Vibrating feeder

Overview

Vibrating feeders (hereinafter referred to as feeders) can be widely used in production processes such as building materials, chemical industry, metallurgy, and coal. They can uniformly, continuously or intermittently convey granular,block-shaped, and powdery materials from silos or funnels to receiving devices. They are ideal conveying equipment for modern warehouse storage, discharging, distribution, and quantitative feeding. It can manually control the feeding amount at any time as needed in the production process. Since the materials move in a jumping manner in the trough with almost no sliding, the wear of the trough is relatively small. It is not suitable for materials with high viscosity and wet powder.

Technical Parameters
feeding amount 60~85t/h
excitation angle 25°
Excitation frequency 15.5Hz
amplitude 4.4mm
exciting force 300~1300kg
Trough length 1000
Tank body width 500
Vibration motor power 0.4kw x 2
Equipment weight 320kg
