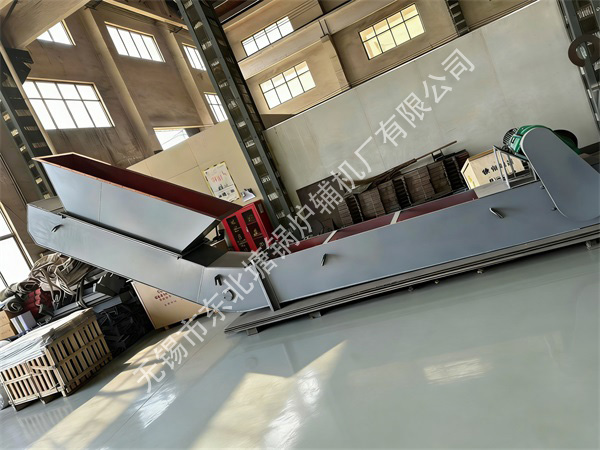

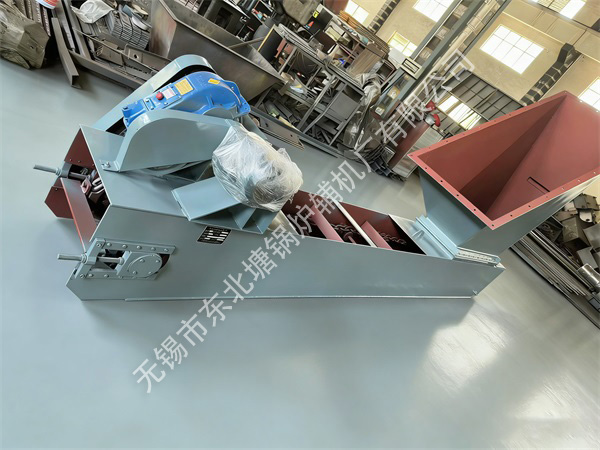

GC-type scraper slag extractor

1. Overview

This product is a new generation of the GC series scraper slag extractors. It is driven by a boiler's active grate or a high-strength round-link chain, featuring a long service life, reliable operation, adaptability to harsh working conditions, and easy maintenance.

II. Technical Parameters

model number	slag discharge amount	slag discharge speed	Motor power	Reducer model
GC-3 1T-4T	3	0.091	1.1	JS₂-0 i=41 m4
GC-3 6T~ 10T	5.5	0.067	1.5	JS₂-0 i=41 m5
GC-B50 15T-40T	5.5	0.067	1.5-2.2	JZQ200~250 i=40.17
GC-B50 10T-20T	5	0.047	1.1	2XQ·WDⅡ

III. Operation, Maintenance and Overhaul

1. The stoker should regularly add lubricating oil to each lubrication point of the machine. 2. It is advisable to use the continuous slag discharge mode for this machine. Never wait until the coal slag is full before removing it, so as to avoid excessive load and damage to the machine. 3. If it is necessary to inspect the inside of the machine body, the pipe at the lower part of the machine body can be unscrewed, the water can be drained, and the inspection can be carried out after cleaning. 4. The tightness of the scraper chain and roller chain can be properly adjusted through the adjusting screws at various parts, and they must not be too tight or too loose. The adjustment sequence is to first adjust the scraper chain, and then adjust the roller chain. If during adjustment, when adjusted to the limit position and the chain is still too loose, one or several chain plates should be removed until the tightness is appropriate.

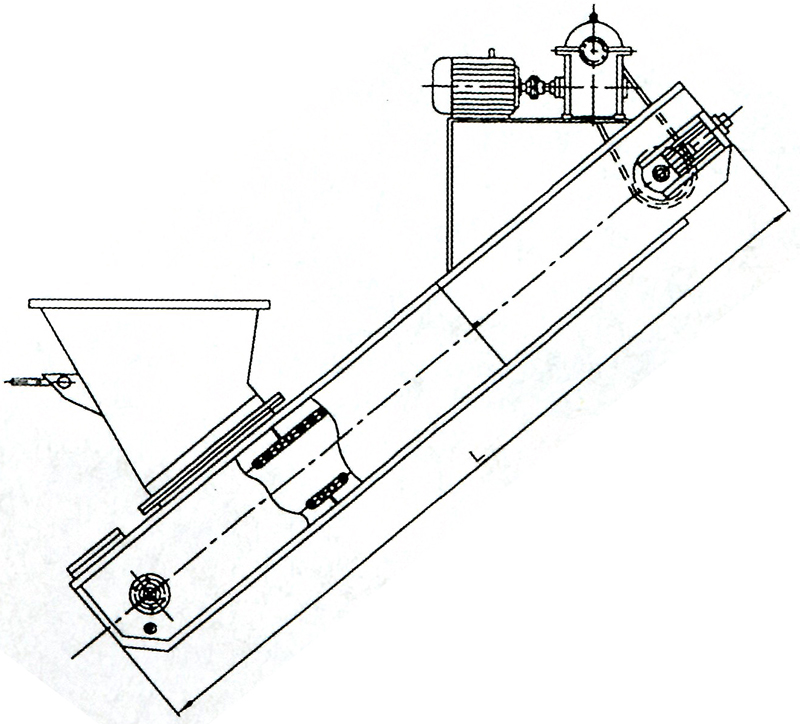

Four, Structure Diagram (1)

GC-3 Scraper slag conveyor

	L	Machine width { B)	Machine height (H)	dip angle
1T-4T	3520	420	450	40°
6T-15T	5060	540	520	40°

Note: All length dimensions and angles in the table can be changed, but they must be specified when placing an order.

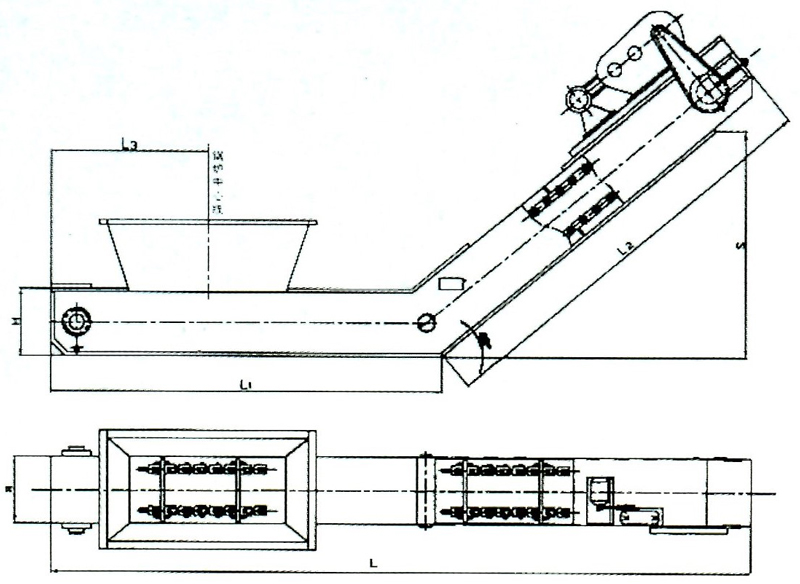

Structure Diagram 2

GC-B50scraper slag extractor

External dimensions and installation dimensions

S	L	Li	L2	Ls	Machine Width (B)	Machine Height (H)	Inclination Angle	Matching Boiler
2070	5460	2990	3230	1200	520	510	40°	Luoshe Boiler Factory
2027	4670	2200	3700	710	520	510	33°	Nanquan Boiler Factory
2070	5460	2990	3230	1200	520	510	40°	Wuxi Boiler Factory
2070	5460	2990	3230	1275	520	510	40°	Yichang Tianlu Boiler Factory

Note: 1、All length dimensions and angles in the table can be changed, but they must be specified when placing an order.
2、This machine does not require embedded parts; a concrete foundation is sufficient.
3、The support for the overhanging part of the machine's head can be provided by the user using concrete or steel bars according to the on-site conditions.。
